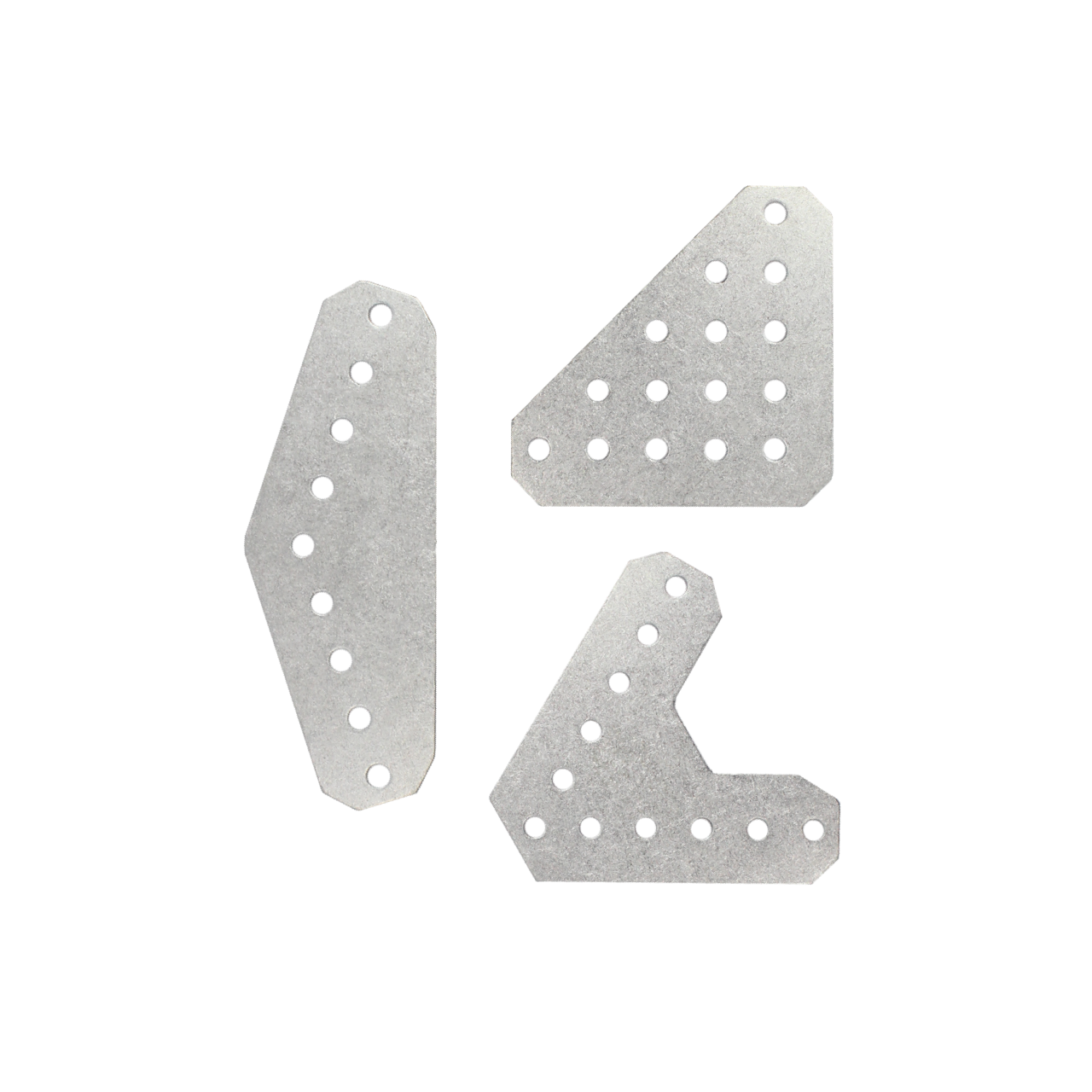

1in Brackets are compatible with the REV ION System and feature #10 clearance holes on a 1/2in pitch. Using these brackets with any of our MAXTube or ION Extrusion allows for easy construction of robot frames, mechanisms, and structure. Lap Joint Brackets provide additional versatility by enabling the effortless connection of two tubes in corner configurations or along the length of one tube, creating “lap joints.” This added functionality ensures more flexible and efficient assembly for specific structural needs. Specifications Material: Aluminum 5052 Thickness: 3mm (0.118in) Grid Pattern: 5mm (0.196in) holes on 0.5in grid Weights: 1in Bracket – 30deg V1: 30g (0.066lb) 1in Bracket – 30deg: 30g (0.066lb) 1in Bracket – 45deg V1: 25g (0.055lb) 1in Bracket – 45deg: 25g (0.055lb) 1in Bracket – 60deg V1: 21g (0.046lb) 1in Bracket – 60deg: 21g (0.046lb) 1in Bracket – 90deg – Sharp Interior: 18g (0.04lbs) 1in Bracket – 90deg: 22g (0.049lb) 1in Bracket – 120deg: 23g (0.051lbs) 1in Bracket – 135deg V1: 22g (0.049lb) 1in Bracket – 135deg: 22g (0.049lb) 1in Bracket – 150deg V1: 21g (0.046lbs) 1in Bracket – 150deg: 21g (0.046lb) 1in Bracket – 180deg: 14g (0.03lbs) 1in Bracket – Internal 3-4-5 – Shallow: 24g (0.053lbs) 1in Bracket – Internal 3-4-5 – Steep: 21g (0.05lbs) 1in Bracket – External 3-4-5 – Steep: 23g (0.051lbs) 1in Bracket – External 3-4-5 – Shallow: 22g (0.049lbs) 1in Bracket – T-Shape – Sharp Interior: 20g (0.04lbs) 1in Bracket – T-Shape: 24g (0.035lbs) 1in End-mount Bearing Bracket V1: 26g (0.057lb) 1in Cross Bracket V1: 70g (0.154lb) 1in Joining Bracket V1: 30g (0.066lb) Lap Joint Bracket – 1in: 52g (0.115lb) Lap Joint Bracket – 2in: 62g (0.137lb) Lap Joint Bracket – Universal: 54g (0.119lb) Documentation ION Build System Guide Introduction to Structure 1in Brackets User Guide Onshape Application Examples – Low, Medium, & High Complexity Onshape Application Example – Linear Actuator Arm Product Options SKU PRODUCT NAME CAD & DRAWINGS REV-21-1570 1in Bracket – 30deg V1 STEP FILE ONSHAPE DRAWING REV-21-2291-PK2 1in Bracket – 30deg – 2 Pack STEP FILE ONSHAPE DRAWING REV-21-1571 1in Bracket – 45deg V1 STEP FILE ONSHAPE DRAWING REV-21-2292-PK2 1in Bracket – 45deg – 2 Pack STEP FILE ONSHAPE DRAWING REV-21-2293-PK2 1in Bracket – 60deg – 2 Pack STEP FILE ONSHAPE DRAWING REV-21-2295-PK2 1in Bracket – 90deg – Sharp Interior – 2 Pack STEP FILE ONSHAPE DRAWING REV-21-2296-PK2 1in Bracket – 90deg – 2 Pack STEP FILE ONSHAPE DRAWING REV-21-2298-PK2 1in Bracket – 120deg – 2 Pack STEP FILE ONSHAPE DRAWING REV-21-1574 1in Bracket – 135deg V1 STEP FILE ONSHAPE DRAWING REV-21-2299-PK2 1in Bracket – 135deg – 2 Pack STEP FILE ONSHAPE DRAWING REV-21-1575 1in Bracket – 150deg V1 STEP FILE ONSHAPE DRAWING REV-21-2300-PK2 1in Bracket – 150deg – 2 Pack STEP FILE ONSHAPE DRAWING REV-21-2302-PK2 1in Bracket – 180deg – 2 Pack STEP FILE ONSHAPE DRAWING REV-21-2316-PK2 1in Bracket – Internal 3-4-5 – Shallow – 2 Pack STEP FILE ONSHAPE DRAWING REV-21-2317-PK2 1in Bracket – Internal 3-4-5 – Steep – 2 Pack STEP FILE ONSHAPE DRAWING REV-21-2319-PK2 1in Bracket – External 3-4-5 – Steep – 2 Pack STEP FILE ONSHAPE DRAWING REV-21-2320-PK2 1in Bracket – External 3-4-5 – Shallow – 2 Pack STEP FILE ONSHAPE DRAWING REV-21-2328-PK2 1in Bracket – T-Shape – Sharp Interior – 2 Pack STEP FILE ONSHAPE DRAWING REV-21-2329-PK2 1in Bracket – T-Shape – 2 Pack STEP FILE ONSHAPE DRAWING REV-21-1577 1in End-mount Bearing Bracket V1 STEP FILE ONSHAPE DRAWING REV-21-1582 1in Cross Bracket V1 STEP FILE ONSHAPE DRAWING REV-21-1583 1in Joining Bracket V1 STEP FILE ONSHAPE DRAWING REV-21-2359-PK2 Lap Joint Bracket – 1in – 2 Pack STEP FILE ONSHAPE DRAWING REV-21-2358-PK2 Lap Joint Bracket – 2in – 2 Pack STEP FILE ONSHAPE DRAWING REV-21-2357-PK2 Lap Joint Bracket – Universal – 2 Pack STEP FILE ONSHAPE DRAWING
