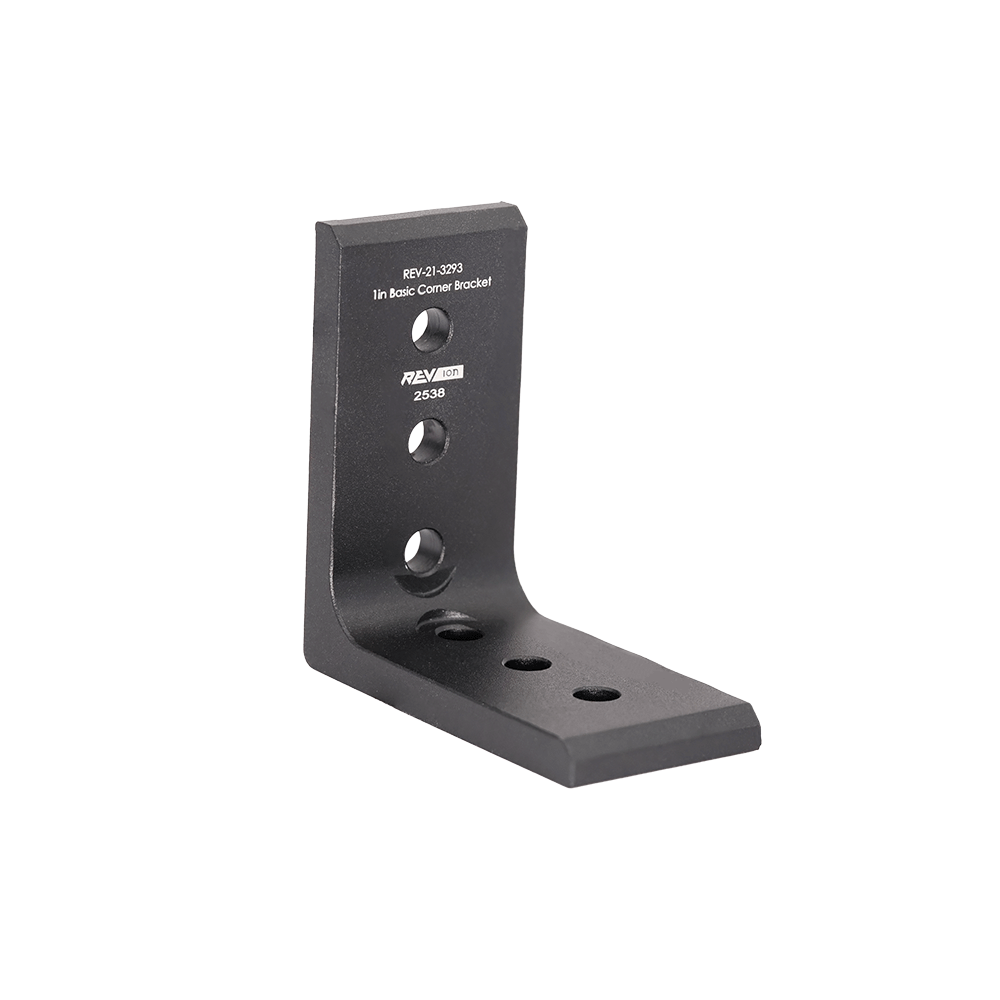

The 1in Basic Corner Bracket is a compact, low profile solution for strengthening MAXTube joints or adding simple mounting points where space is limited. Its 5mm thick aluminum construction provides dependable stiffness without the added bulk of a gusseted design, making it ideal for tight assemblies that still need structural support. Each 2in leg includes three #10 clearance holes on a 1/2in pitch, and the clearance holes in the radiused bend offers screw head clearance. The 1in width aligns cleanly with 1×1 MAXTube and integrates seamlessly into the REV ION System.
Features
5mm thick aluminum for high strength
Low profile, non gusseted shape maximizes clearance in tight areas
Three #10 clearance holes per leg on a 1/2in pitch
1in wide profile fits with 1×1 MAXTube
Compatible with the REV ION System
Specifications
Material: 6061 Aluminum
Finish: Anodized Black
Thickness: 5mm (0.197in)
Length: 50.8mm (2in)
Height: 50.8mm (2in)
Width: 25.4mm (1in)
Grid Pattern: 5mm (0.197in) holes on 0.5in grid
Weight: 32g (0.071lb)
Documentation
Structure Bracket Overview
CAD & Drawings
REV-21-3293 STEP FILE
REV-21-3293 ONSHAPE
REV-21-3293 Drawing
