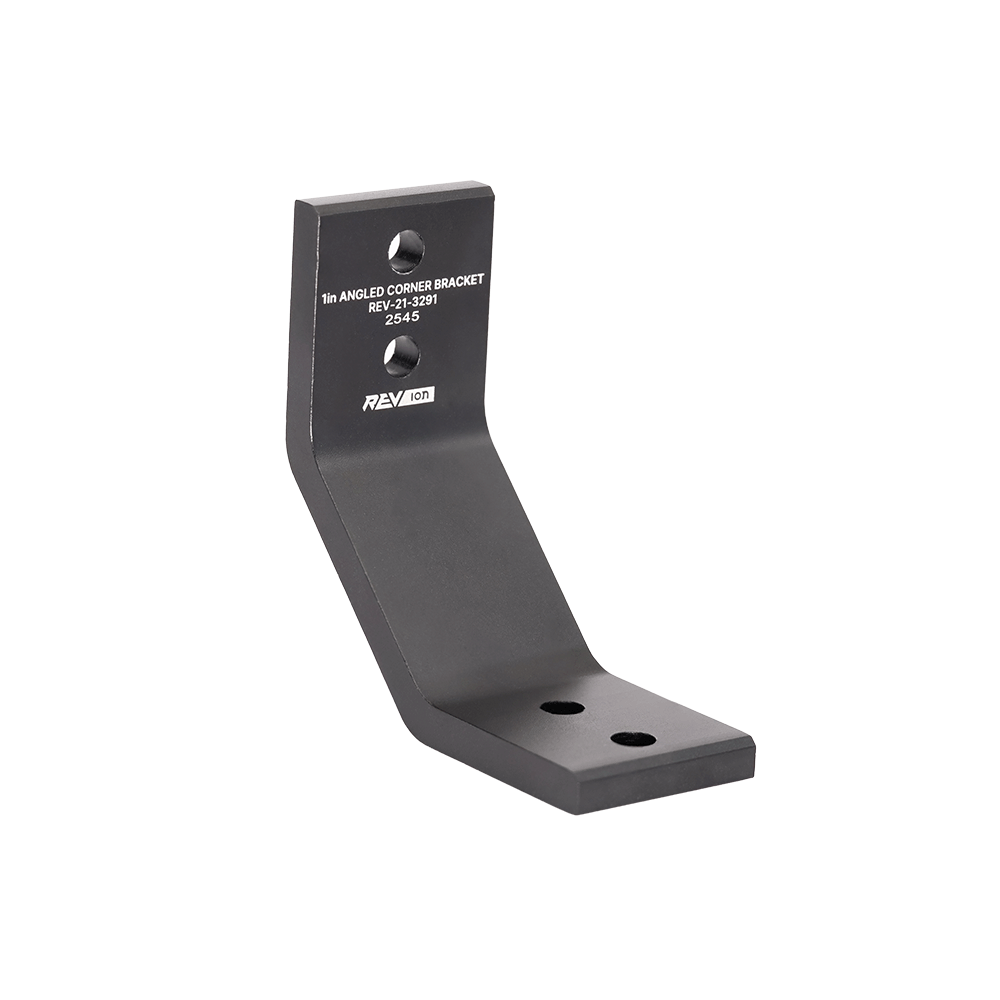

The 1in Angled Corner Bracket is a compact, heavy duty solution for reinforcing MAXTube joints and building rigid structures in tight spaces. Its 5mm thick aluminum body provides consistent strength, while the integrated angle dramatically boosts joint stiffness by resisting torsion and bending loads. Each end of the bracket includes two #10 clearance holes on a 1/2in pitch, giving teams flexible mounting options for corner reinforcement or general structure assembly. At only 1in wide, it nests cleanly alongside 1×1 MAXTube and fits easily into dense robot designs.
Features
5mm thick aluminum for high strength
Angled profile increases joint rigidity
Two #10 clearance holes on each end, 1/2in pitch
1in wide profile fits with 1×1 MAXTube
Compatible with the REV ION System
Specifications
Material: 6061 Aluminum
Finish: Anodized Black
Thickness: 5mm (0.197in)
Length: 57.2mm (2.25in)
Height: 57.2mm (2.25in)
Width: 25.4mm (1in)
Grid Pattern: 5mm (0.197in) holes on 0.5in grid
Weight: 31g (0.068lb)
DOCUMENTATION
Structure Bracket Overview
CAD & Drawings
REV-21-3291 STEP FILE
REV-21-3291 ONSHAPE
REV-21-3291 Drawing
