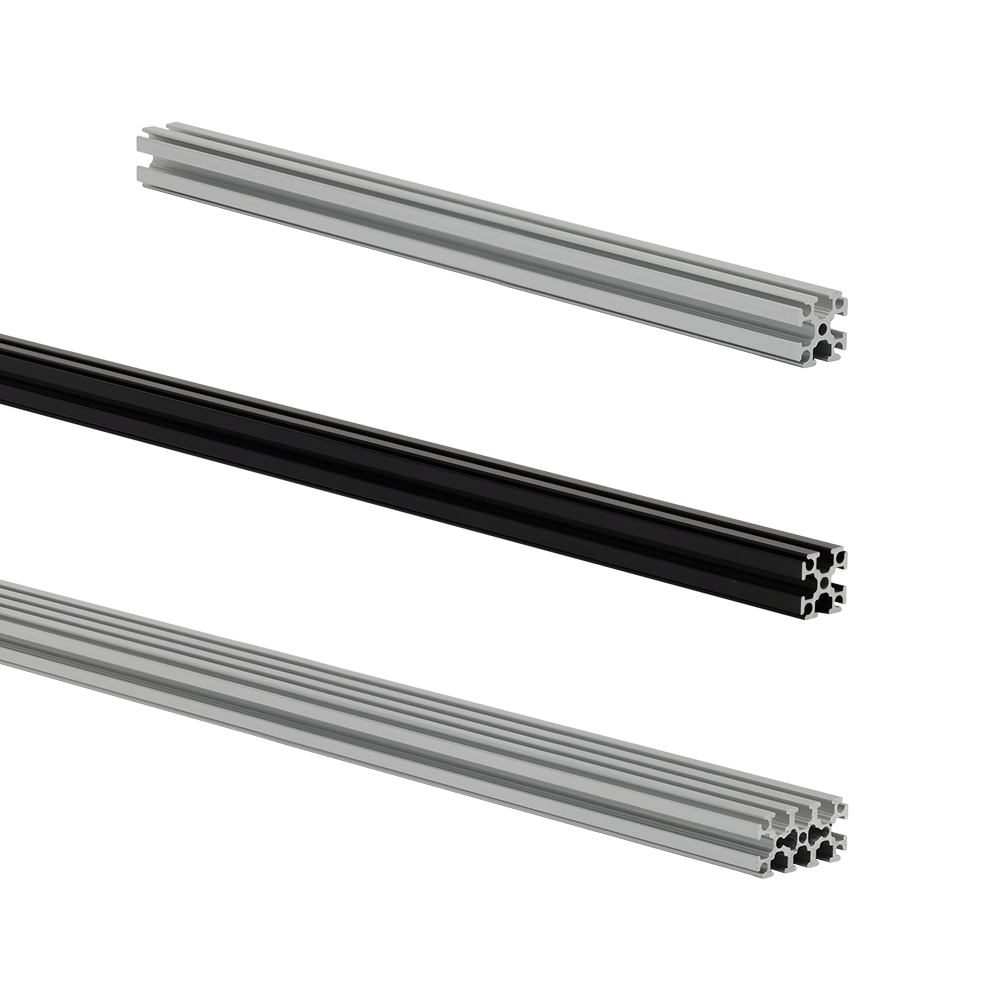

REV Building System also comes in a 15mm x 30mm square extrusion. The slots are designed to fit standard M3 hardware rather than expensive t-nuts. Use the 15mm x 30mm extrusion when more strength is needed for an application.
For smaller applications the REV Building System also comes in a 15mm x 15mm square extrusion. The slots are designed to fit standard M3 hardware rather than expensive t-nuts. This product (REV-41-1568-PK2) is a 2-pack of 120mm pieces of extrusion, for when you need a shorter piece of extrusion without extra cutting.
For smaller applications the DUO Build System also comes in a 15mm x 15mm square extrusion. The 15mm profile of the 15mm Extrusion has slots on on all four sides that accept standard M3 hardware. Rather than using a T-nut, which is more expensive, slide a M3 hex head screw along the slot and adjust brackets and other build materials as needed. This product (REV-41-1431-PK2) is a 2-pack of 225mm pieces of extrusion, for when you need a shorter piece of extrusion without extra cutting.
This product (REV-41-1430-PK2) is a 2-pack of 150mm long pieces of extrusion with ends cut neatly at a 45 degree angle. Great for diagonal bracing without extra cutting.
The flexibility of the 15mm Extrusion makes it a great option for arms, lifts, and other robot manipulators and mechanisms. This is one of the most compact structure pieces and allows for compact designs. Depending on the design and use case, you may wish to add additional supports to avoid twisting under high loads, also known as torsion.
Features
All holes can be tapped with an M3 tap
Slots are compatible with standard M3 hex nuts and M3 hex-head cap screws as studs
Specifications
REV-41-1093
Material: 6063 Aluminum, clear anodized
Height: 15mm
Width: 30mm
Length: 1m
REV-41-1586
Material: 6063 Aluminum, black anodized
Height: 15mm
Width: 30mm
Length: 1m
REV-41-1568-PK2
Material: 6063-T5 aluminum, clear anodized
Height: 15mm
Width: 15mm
Length: 120mm
REV-41-1431-PK2
Material: 6063-T5 aluminum, clear anodized
Height: 15mm
Width: 15mm
Length: 225mm
REV-41-1432-PK4
Material: 6063-T5 aluminum, clear anodized
Height: 15mm
Width: 15mm
Length: 420mm
REV-41-1430-PK2
Material: 6063-T5 aluminum, clear anodized
Height: 15mm
Width: 15mm
Length: 150mm
REV-41-1017
Material: 6063-T5 aluminum, clear anodized
Height: 15mm
Width: 15mm
Length: 1m
REV-41-1569
Material: 6063-T5 aluminum, black anodized
Height: 15mm
Width: 15mm
Length: 1m
Documentation
Structure Basics
Notes
REV Robotics has two different size extrusions and the plates and brackets for each one are not directly compatible. Please be sure that you are buying the right bracket for the correct system when purchasing. The systems will either be marked 15mm for the REV DUO System or 1in for the REV ION System.
Product Options
SKU
PRODUCT NAME
CAD & DRAWINGS
REV-41-1093
15mm x 30mm Extrusion – 1m – 90° Ends – Clear Anodized
STEP FILE ONSHAPE DRAWING
REV-41-1586
15mm x 30mm Extrusion – 1m – 90° Ends – Black Anodized
STEP FILE ONSHAPE DRAWING
REV-41-1587-PK4
15mm x 30mm Extrusion – 420mm – 90° Ends – 4 Pack
STEP FILE ONSHAPE DRAWING
REV-41-1568-PK2
15mm Extrusion – 120mm – 90° Ends – 2 Pack
STEP FILE ONSHAPE DRAWING
REV-41-1431-PK2
15mm Extrusion – 225mm – 90° Ends – 2 Pack
STEP FILE ONSHAPE DRAWING
REV-41-1432-PK4
15mm Extrusion – 420mm – 90° Ends – 4 Pack
STEP FILE ONSHAPE DRAWING
REV-41-1430-PK2
15mm Extrusion – 150mm – 45° Ends – 2 Pack
STEP FILE ONSHAPE DRAWING
REV-41-1017
15mm Extrusion – 1m – 90° Ends – Clear Anodized
STEP FILE ONSHAPE DRAWING
REV-41-1569
15mm Extrusion – 1m – 90° Ends – Black Anodized
STEP FILE ONSHAPE DRAWING
