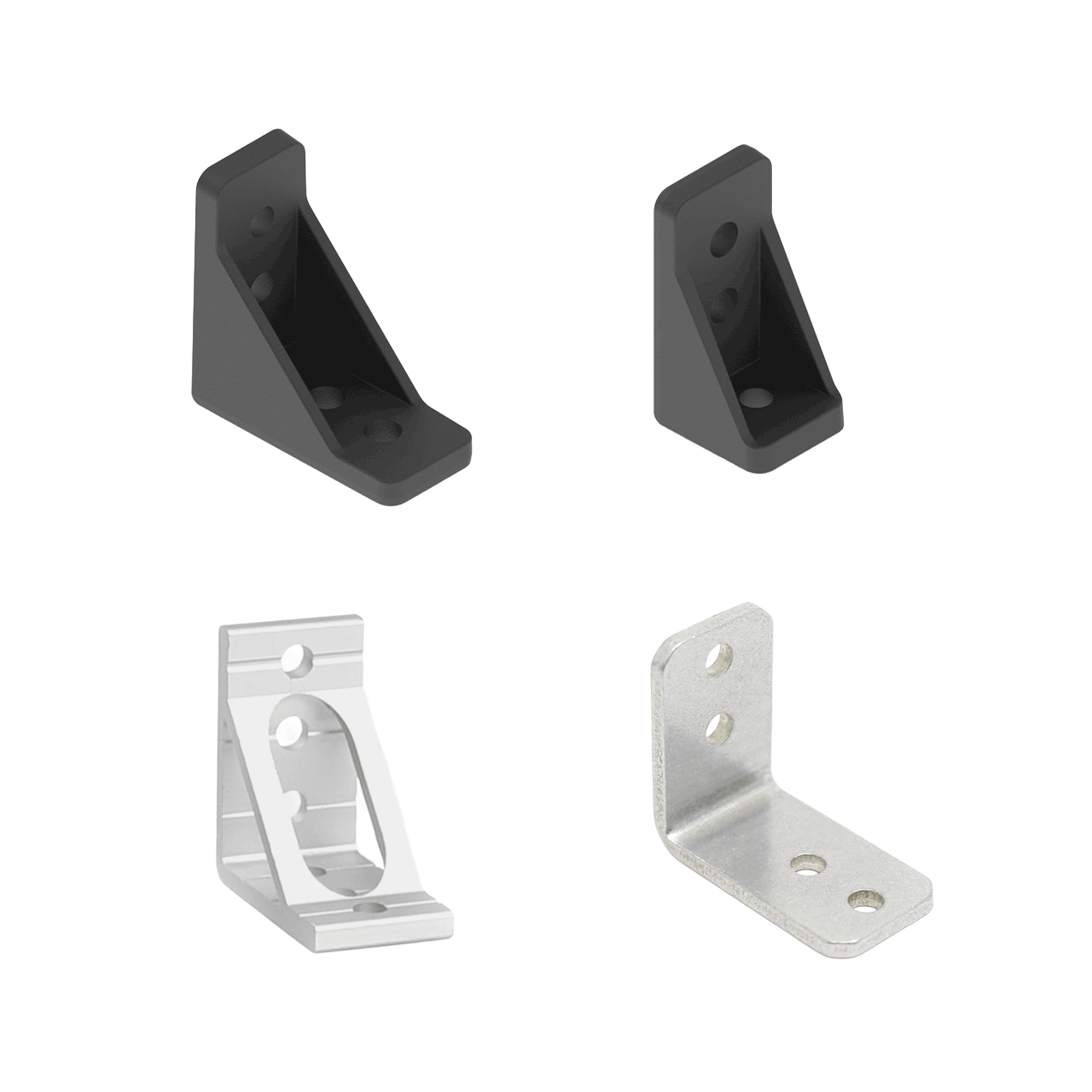

This 90 degree inside corner bracket (REV-41-1320-PK8) is used with the DUO Build System 15mm Extrusion. These plastic brackets have webbing to strengthen the corner and includes a set of alignment ribs designed to seat the bracket into the extrusion channel increasing joint alignment, strength, and rigidity.
This lap corner bracket (REV-41-1321-PK8) is used with the DUO Build System 15mm Extrusion. These plastic brackets have webbing to strengthen the corner and includes a set of alignment ribs on one side designed to seat the bracket into the extrusion channel increasing joint alignment, strength, and rigidity. The opposite face of the bracket is flat to allow mating with different orientations of extrusion.
This Metal HD Inside Corner bracket (REV-41-1688-PK4) is used with the REV DUO 15mm Extrusion System for heavy duty applications.
This Metal Inside Corner bracket (REV-41-1479-PK8) is used with the REV 15mm Extrusion System. Version 2 brackets offer many improvements over our previous metal brackets, including holes on an 8mm grid that is compatible with many other building systems. Version 2 of this bracket provides more clearance to access the mounting hardware used with it.
Specifications
REV-41-1320-PK8, REV-41-1321-PK8
Material: Nylon (PA66)
Bolt Area Thickness: 3mm
Hole Diameter: M3 clearance
Hole Grid Spacing: 8mm
REV-41-1688-PK4
Material: 6063 Aluminum
REV-41-1479-PK8
Material: 5052 Aluminum
Thickness: 2mm
Mounting Holes: 3.4mm diameter on 8mm grid
Documentation
DUO Build System Guide
Product Options
SKU
PRODUCT NAME
CAD & DRAWINGS
REV-41-1320-PK8
15mm Plastic Inside Corner Bracket – 8 Pack
STEP FILE ONSHAPE DRAWING
REV-41-1321-PK8
15mm Plastic Lap Corner Bracket – 8 Pack
STEP FILE ONSHAPE DRAWING
REV-41-1688-PK4
15mm Metal HD Inside Corner Bracket – 4 Pack
STEP FILE ONSHAPE DRAWING
REV-41-1479-PK8
15mm Metal Inside Corner Bracket V2 – 8 Pack
STEP FILE ONSHAPE DRAWING
