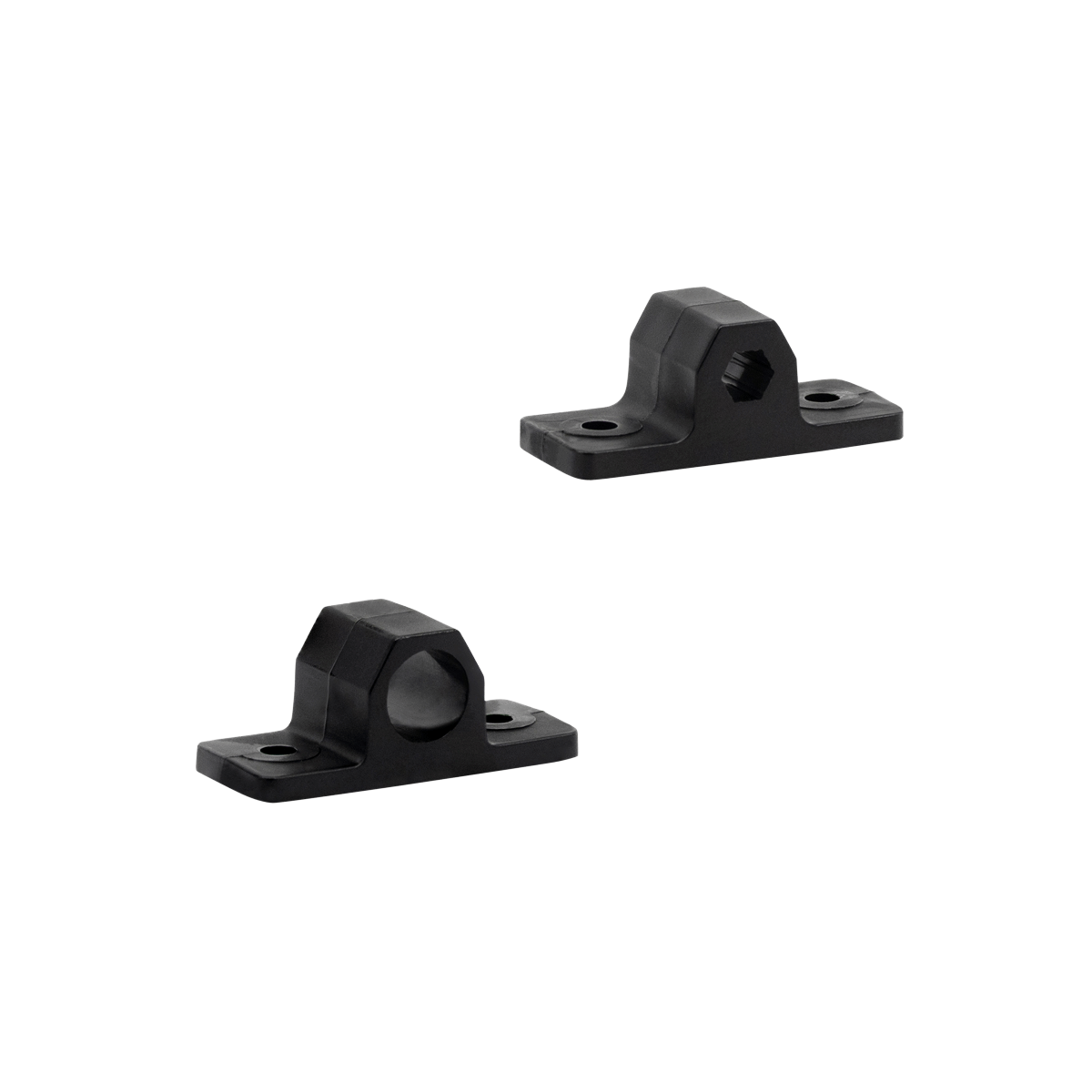

This bearing pillow block bracket (REV-41-1317) is used with the DUO Build System 15mm Extrusion. The 9mm center hole is use with either the Long Through-bore Bearing (REV-41-1329) or the End Cap Bearing (REV-41-1322) to provide a low friction shaft support. This bracket has alignment ribs on the bottom which help align the bracket with the extrusion channel.
This bearing pillow block bracket (REV-41-1316) is used with the DUO Build System 15mm Extrusion. The hex center hole fits the 5mm hex shaft. This bracket has alignment ribs on the bottom which help align the bracket with the extrusion channel.
Specifications
Material: Nylon (PA66)
Bolt Area Thickness: 3mm
Hole Diameter: M3 clearance
Hole Spacing: 24mm
Overall Length: 36mm
Documentation
DUO Build System Guide
SKU
PRODUCT NAME
CAD & DRAWINGS
REV-41-1316-PK4
15mm Hex Pillow Block – 4 Pack
STEP FILE ONSHAPE DRAWING
REV-41-1317-PK8
15mm Bearing Pillow Block – 8 Pack
STEP FILE ONSHAPE DRAWING
