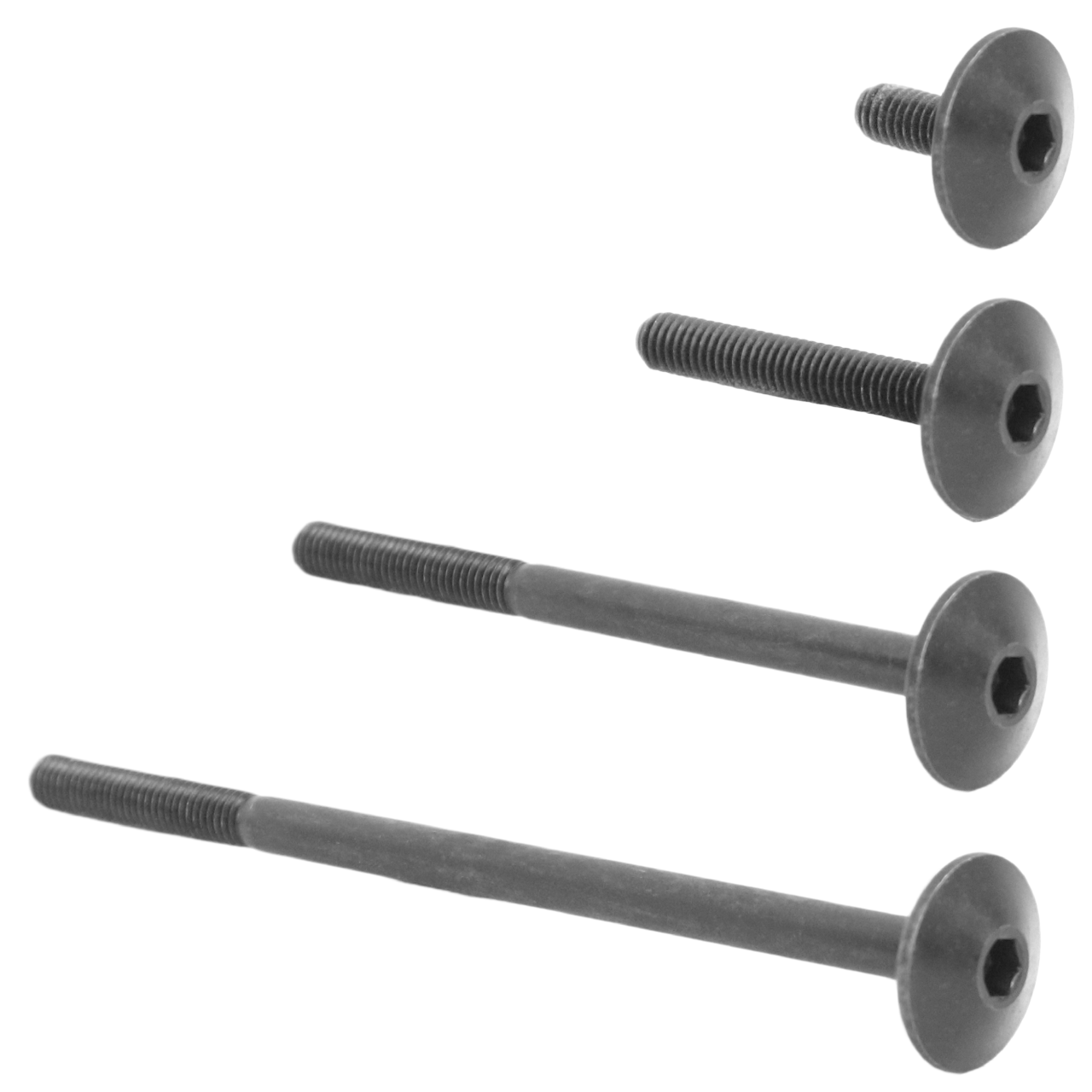

#10-32 Shaft End Screw V1 and V2 are compatible with the REV ION System and are used to retain parts on any ION hex shaft instead of shaft collars. 1/2in Rounded Hex Shafts in various lengths are available and come tapped with #10-32 holes. The integrated flange of the Shaft End Screw is larger than the outside diameter of the 1/2in hex and will keep motion components from sliding off the end of the shaft. All Shaft End Screws also feature a nylon patch on the threads making them self-locking without the need for applying anything additional while keeping it safe for use with all materials. This also allows you to retain a shaft within bearing, like the #10 Clearance Bearing – Flanged – 7/8in OD, while the head of the Shaft End Screw makes perfect contact with the inner race of the bearing to allow smooth rotation. #10-32 Shaft End Screw V2 – 0.5in are also specifically used with any Vortex Shaft to retain the shafts within the Vortex motor! Specifications #10-32 Shaft End Screw V1 Material: Alloy Steel Screw Size: #10 Thread: 32 threads per inch Head Diameter: 15.88mm (0.625in) Hex Key Size: 1/8in Length: 12.7mm (0.5in) Weight: 3g (0.007lbs) #10-32 Shaft End Screw V2 Material: Alloy Steel Screw Size: #10 Thread: 32 threads per inch Head Diameter: 17mm (0.67in) Hex Key Size: 5/32in Length & Weights: #10-32 Shaft End Screw V2 – 0.5in Length: 12.7mm (0.5in) Weight: 5g (0.011lbs) #10-32 Shaft End Screw V2 – 1.25in Length: 31.75mm (1.25in) Weight: 7g (0.015lbs) #10-32 Shaft End Screw V2 – 1.75in Length: 44.45mm (1.75in) Weight: 9g (0.020lbs) #10-32 Shaft End Screw V2 – 2.75in Length: 69.85mm (2.75in) Weight: 13g (0.029lbs) #10-32 Shaft End Screw V2 – 3.75in Length: 95.25mm (3.75in) Weight: 17g (0.037lbs) Documentation ION Build System Guide Introduction to Motion Shaft Collars and Shaft End Screw User Guide Onshape Application Examples Product Options SKU PRODUCT NAME CAD & DRAWINGS REV-21-2056-PK10 #10-32 Shaft End Screw V1 – 0.5in – 10 Pack STEP FILE ONSHAPE DRAWING REV-21-2805-PK25 #10-32 Shaft End Screw V2 – 0.5in – 25 Pack STEP FILE ONSHAPE DRAWING REV-21-3738-PK25 #10-32 Shaft End Screw V2 – 1.25in – 25 Pack STEP FILE ONSHAPE DRAWING REV-21-3739-PK25 #10-32 Shaft End Screw V2 – 1.75in – 25 Pack STEP FILE ONSHAPE DRAWING REV-21-3740-PK25 #10-32 Shaft End Screw V2 – 2.75in – 25 Pack STEP FILE ONSHAPE DRAWING REV-21-3741-PK25 #10-32 Shaft End Screw V2 – 3.75in – 25 Pack STEP FILE ONSHAPE DRAWING
