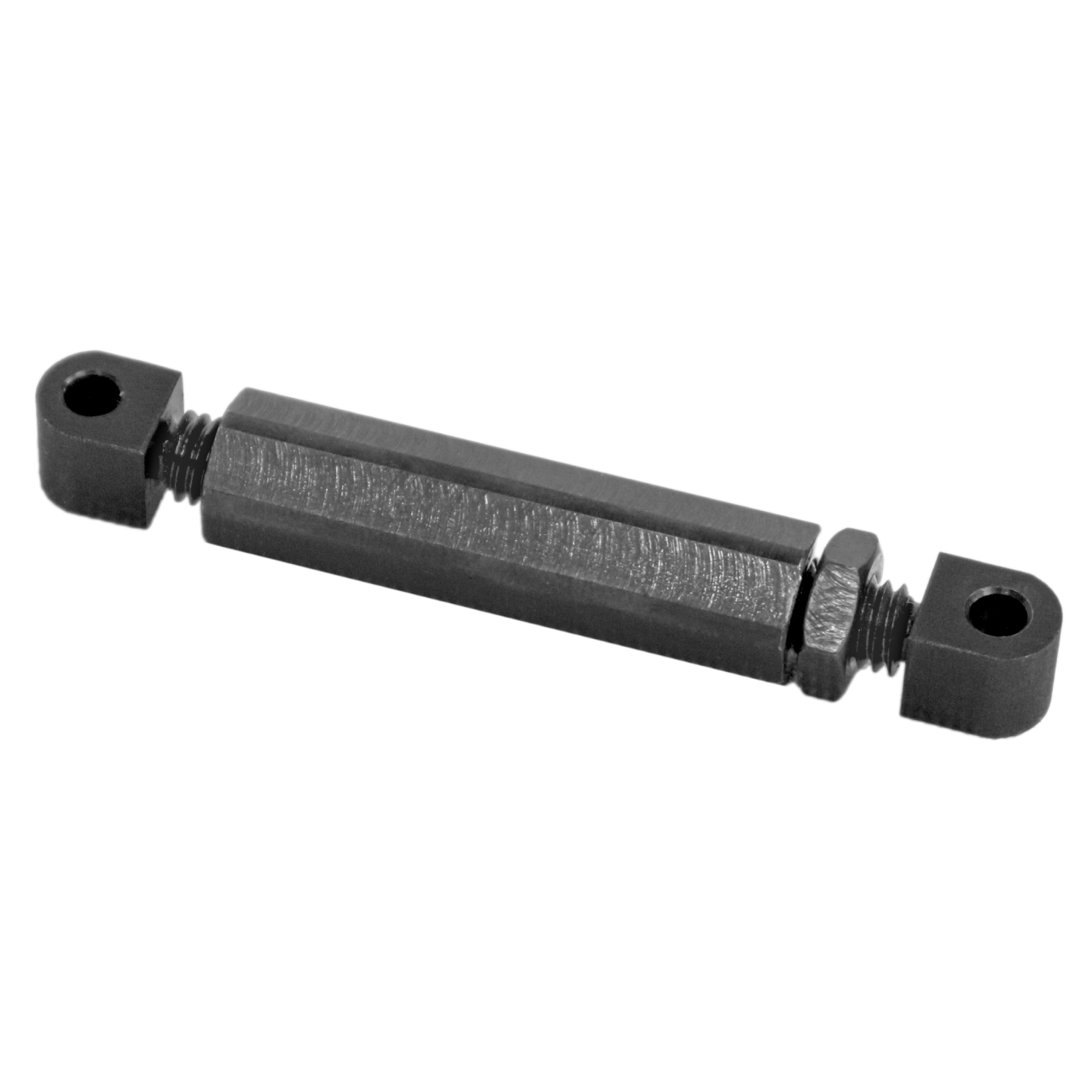

The #35 Chain Turnbuckle is compatible with the REV ION System. It is designed to adjust the length of a #35 Roller Chain by replacing a few links in a run and also allows the user to tension the chain by adjusting the turnbuckle. The turnbuckle is typically attached with a #35 Connecting Link on either side. They are typically used for linear motion applications (like elevators) or rotating applications that don’t need a full rotation (like arms or virtual 4-bars). One side of the turnbuckle has right hand threads and the other side has left hand threads so that when the body is rotated relative to the chain, the two ends move in and out and change the overall length. The #35 Chain Turnbuckle also features a jam nut which can be tightened to lock the turnbuckle in place and keep it from loosening from vibration. Features Compatible with #35 Roller Chain Jam nut to lock position Specifications Material: Steel Finish: Black Oxide Displacement: 19.1mm (0.75in) Retracted C-C Distance: 50.8mm (2in) Extended C-C Distance: 82.55mm (3.25in) Weight: 33g (0.07lb) Documentation ION Build System Guide CAD & Drawings REV-21-3705 STEP File REV-21-3705 Onshape REV-21-3705 Drawing
