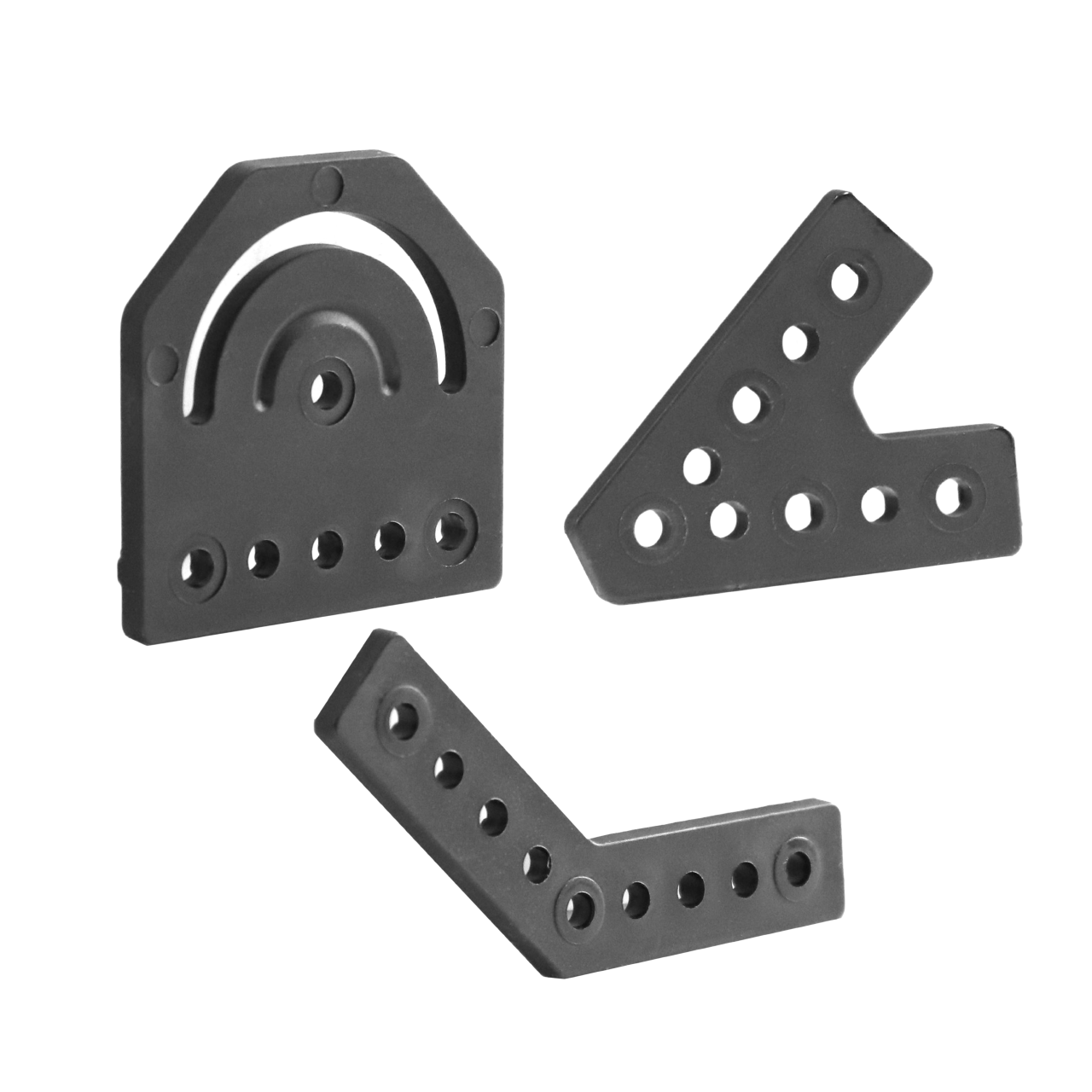

15mm Plastic Brackets are compatible with the REV DUO System. Each bracket includes a set of alignment ribs designed to seat the bracket into the extrusion channel increasing joint alignment, strength, and rigidity. The 15mm Plastic Variable Angle Bracket (REV-41-1318) has a larger arced channel allowing two pieces of extrusion to be adjusted to any angle. The smaller arced indentation is a drill alignment mark so once the angle is set, an additional bolt can be added to lock the bracket angle in place. Specifications Material: Nylon (PA66) Thickness: 3mm Hole Diameter: M3 clearance Hole Grid Spacing: 8mm Documentation BuildingGuide Product Options SKU PRODUCT NAME CAD & DRAWINGS REV-41-1308-PK8 15mm Plastic 30 Degree Bracket – 8 Pack STEP FILE ONSHAPE DRAWING REV-41-1307-PK8 15mm Plastic 45 Degree Bracket – 8 Pack STEP FILE ONSHAPE DRAWING REV-41-1306-PK8 15mm Plastic 60 Degree Bracket – 8 Pack STEP FILE ONSHAPE DRAWING REV-41-1305-PK8 15mm Plastic 90 Degree Bracket – 8 Pack STEP FILE ONSHAPE DRAWING REV-41-1311-PK6 15mm Plastic 120 Degree Bracket – 6 Pack STEP FILE ONSHAPE DRAWING REV-41-1310-PK8 15mm Plastic 135 Degree Bracket – 8 Pack STEP FILE ONSHAPE DRAWING REV-41-1312-PK6 15mm Plastic 150 Degree Bracket – 6 Pack STEP FILE ONSHAPE DRAWING REV-41-1318-PK4 15mm Plastic Variable Angle Bracket – 4 Pack STEP FILE ONSHAPE DRAWING
